Garbage Loader
Built to Work. Built to Last.
GARBAGE LOADER is the reliable electric loader for urban logistics, garbage collection, and short-distance heavy-duty applications.

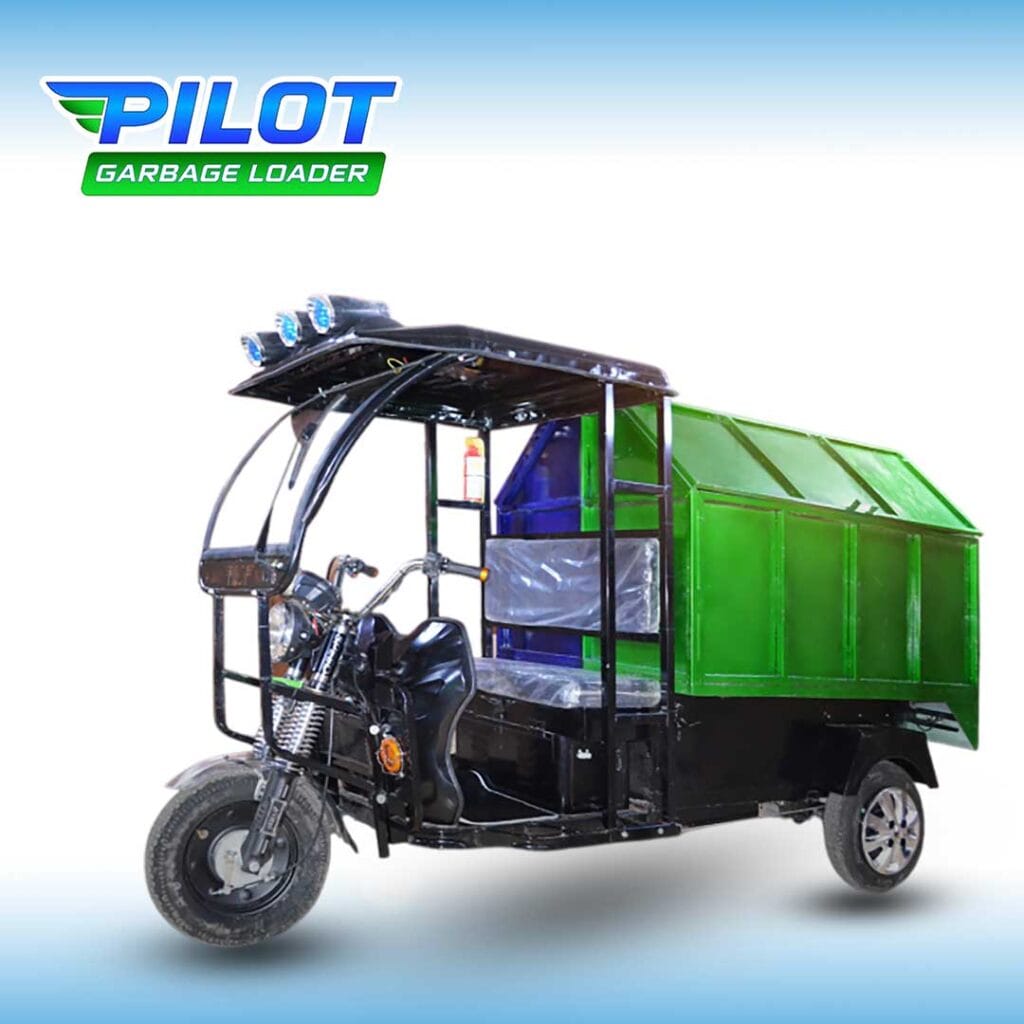

GARBAGE LOADER – Smart Utility Electric 3-Wheeler
Designed for India’s demanding last-mile delivery and sanitation needs, PILOT cargo models ensure performance, economy, and zero emissions.
Colors Availablity
Tailored Made
Power & Precision
Detailed
Specifications
| Motor | BLDC 1000W/1250W |
| Controller | 60A Capacity |
| Speed | Economy ~ 25 KM/H |
| Charger Specifications | 18AMP/25AMP |
| Range/Charge | 90 km to 100 km |
| Charging Time | 4 to 8 Hours |
| Gross Vehicle Weight | 745 KG |
| Front Suspension | 43MM Telescopic Hydraulic Shockers |
| Brake System | Both Drum Brake |
| Rear Suspension | Leaf Spring With Spring Shockers |
| Wheel Base | 1200MM |
| Ground Clearance | 140MM |
| Dimension (LxWxH) | (2750 x 990 x 1780) MM |
| Key Feature | Central Locking & Fog Lights |
| Loading Capacity | 384 Kg |
| Head Light | 12V Tube |
| Tyre | Front - 3.75 - 12 Rear - 3.75 - 12 |
| Back Light | Unique Design with LED |
| Speedometer | Digital |
| Battery | Lead Acid/Lithium Ion |
| Wheel | Stylish Aluminium Alloy Wheel |
Motor
Motor Type: BLDC Motor (1000W / 1250W)
Controller Capacity: 50A
Drive Type: Hub Motor
Controller Capacity: 50A
Drive Type: Hub Motor
Battery
Battery Type: Lead Acid / Lithium-ion
Charging Time: 4–8 hours
Charger Specifications: 18A / 25A
Charging Time: 4–8 hours
Charger Specifications: 18A / 25A
Performance
Top Speed: 25 km/h (Economy Mode)
Range per Charge: 90–100 km
Loading Capacity: 384 kg
Gross Vehicle Weight: 584 kg
Range per Charge: 90–100 km
Loading Capacity: 384 kg
Gross Vehicle Weight: 584 kg
Chassis
Brakes: Drum Brakes (Front & Rear)
Front Suspension: 43mm Telescopic Hydraulic Shockers
Rear Suspension: Leaf Spring with Spring Shockers
Tyres: Front – 3.75-12, Rear – 3.75-12
Wheels: Stylish Aluminium Alloy
Front Suspension: 43mm Telescopic Hydraulic Shockers
Rear Suspension: Leaf Spring with Spring Shockers
Tyres: Front – 3.75-12, Rear – 3.75-12
Wheels: Stylish Aluminium Alloy
Dimensions
Wheelbase: 1200 mm
Ground Clearance: 140 mm
L x W x H: 2750 x 990 x 1790 mm
Ground Clearance: 140 mm
L x W x H: 2750 x 990 x 1790 mm
