Built to Work. Built to Last.
LOAD KING is the reliable electric loader for urban logistics, garbage collection, and short-distance heavy-duty applications.

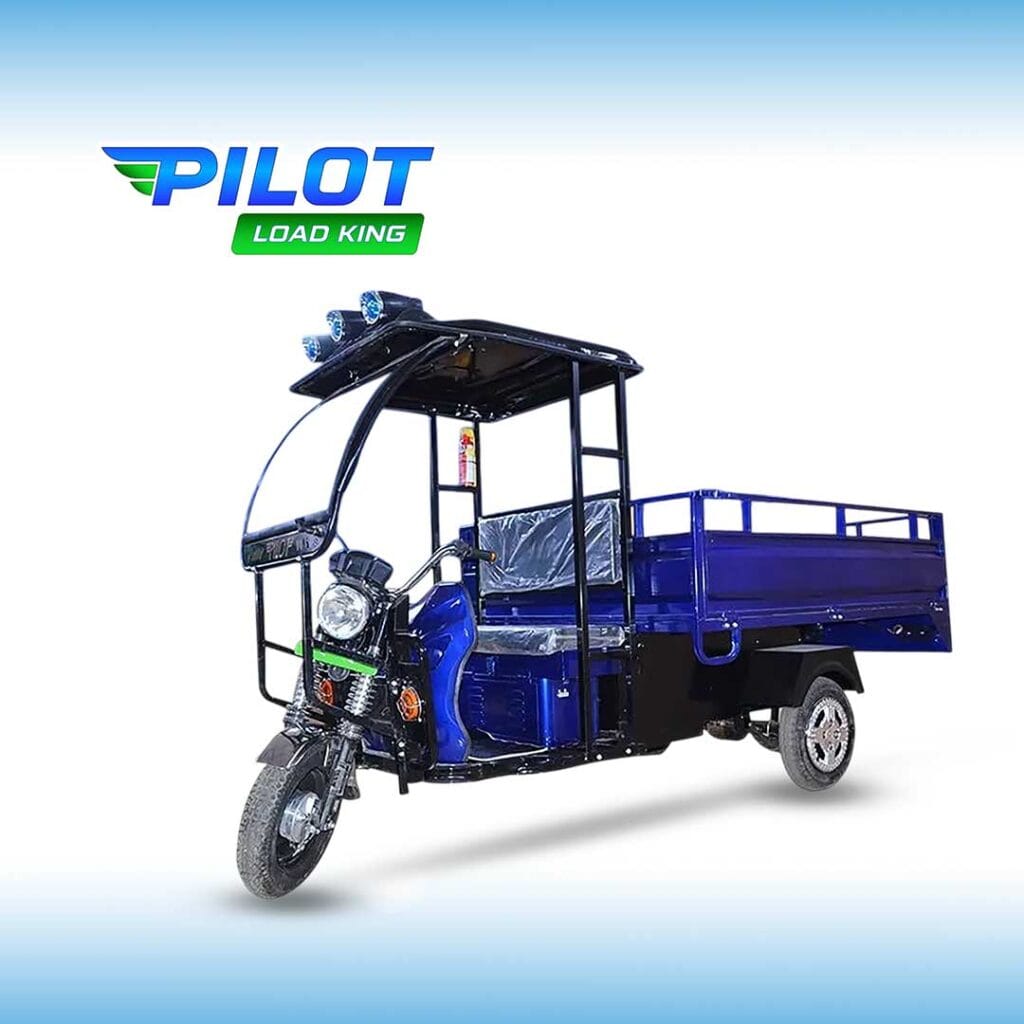

LOAD KING – Smart Utility Electric 3-Wheeler
Designed for India’s demanding last-mile delivery and sanitation needs, PILOT cargo models ensure performance, economy, and zero emissions.
Colors Availablity
Tailored Made
Power & Precision
Detailed
Specifications
| Motor | BLDC 1000W/1250W |
| Controller | Capacity: 60A |
| Speed | Economy ~ 25 KM/H |
| Charger Specifications | 18AMP/25AMP |
| Range/Charge | 90 km to 100 km |
| Charging Time | 4 to 8 Hours |
| Gross Vehicle Weight | 745 Kg |
| Front Suspension | 43MM Telescopic Hydraulic |
| Brake System | Both Drum Brake |
| Rear Suspension | Leaf Spring With Spring Shockers |
| Wheel Base | 2200MM |
| Ground Clearance | 140 mm |
| Dimension (LxWxH) | (2790 x 998 x 1428) MM |
| Key Feature | Central Locking & Fog Lights |
| Loading Capacity | 384 Kg |
| Head Light | 12V Tube |
| Tyre | Front - 3.75 - 12 Rear - 3.75 - 12 |
| Back Light | Unique Design with LED |
| Speedometer | Digital |
| Battery | Lead Acid/Lithium Ion |
| Wheel | Stylish Aluminium Alloy Wheel |
| Available Sizes | 3x6 and 4x6 |
Motor
Motor Type: BLDC Hub Motor (1000W / 1250W)
Controller Capacity: 50A
Controller Capacity: 50A
Battery
Battery Type: Lead Acid / Lithium-ion
Charging Time: 4–8 Hours
Charger Specifications: 18AMP / 25AMP
Charging Time: 4–8 Hours
Charger Specifications: 18AMP / 25AMP
Performance
Top Speed: 25 KM/H (Economy Mode)
Range per Charge: 90–100 km
Range per Charge: 90–100 km
Chassis
Wheel Base: 1200 MM
Ground Clearance: 140 MM
Rear: 3.75 – 12
Ground Clearance: 140 MM
Rear: 3.75 – 12
Dimensions
L × W × H: 2750 × 990 × 1790 MM
Gross Vehicle Weight: 584 Kgs
Loading Capacity: 384 Kg
Gross Vehicle Weight: 584 Kgs
Loading Capacity: 384 Kg
Ready to Ride into the future?
